Lensora Studio API

---

How it works

Lensora Studio is a two-call orchestrator that wraps four PixelAPI primitives behind a single guided flow:

1. Detect — we run object detection on your photo and return up to 8 foreground proposals (bbox, label, category) so the user picks the subject.
2. Cut + replace background — the chosen subject is segmented out; you can leave it transparent, drop in your own backplate URL, or describe a new scene in plain English.
3. 3D generation — the cropped subject is reconstructed as a full 360° mesh with production-ready textures (real depth, not a flat slab).
4. Cinematic render — the mesh is composited over your new background and rendered as a 24 fps MP4 from one of three camera moves: turntable, dolly, or cinematic.

You make two HTTP calls. The first returns object proposals in < 2 s. The second runs the full pipeline in the background and you poll for the result.

Pricing

Endpoint	Credits	USD	Refund on failure
/v1/studio/init	5	$0.005	n/a (charged on success only)
/v1/studio/transform	75	$0.075	Yes — auto-refunded if any stage fails or times out
End-to-end	80	$0.08

No subscription required. Pay-per-use. Median end-to-end runtime is ~3-4 minutes (object detection ≈ 1 s, the rest is parallel background-replace + 3D + render).

Endpoints

1. POST /v1/studio/init — upload + detect

Upload a photo. Get back object proposals plus a session_id you'll use for the transform call.

Request (multipart/form-data)

Field	Type	Required	Description
image	file	required	JPEG / PNG / WebP. Max 20 MB.
max_objects	int	optional	Cap the number of returned proposals. Range 2-8, default 6.

Example — cURL

curl -X POST https://api.pixelapi.dev/v1/studio/init \
  -H "Authorization: Bearer $PIXELAPI_KEY" \
  -F "[email protected]" \
  -F "max_objects=6"

Response

{
  "session_id": "2a91884c-1bb5-44e3-a6e0-7db0a5a56668",
  "source_url": "https://api.pixelapi.dev/uploads/3f27a1...jpg",
  "objects": [
    {
      "label": "vintage twin-lens reflex camera",
      "category": "product",
      "bbox": [0.18, 0.12, 0.79, 0.93]
    },
    {
      "label": "entire image (no crop)",
      "category": "full_frame",
      "bbox": [0.0, 0.0, 1.0, 1.0]
    }
  ],
  "suggested_actions": [],
  "credits_used": 5,
  "vlm_elapsed_ms": 842
}

• bbox is normalized [x1, y1, x2, y2] in 0-1 range, top-left origin.
• The list always includes a synthetic "entire image (no crop)" entry so users can transform the full frame as one subject (good for logos, flat-lay collages, anything detection might over-segment).
• If the photo includes clothing, suggested_actions will recommend the /v1/video-tryon workflow.

2. POST /v1/studio/transform — run the pipeline

Pick the object, choose a background, choose a camera. Returns a job_id immediately; the job runs in the background and you poll for status.

Request (application/json)

Field	Type	Required	Description
session_id	string	required	From /init. Sessions live 24h.
object_index	int	optional	Index into the objects array. Default 0.
background	object	required	See background modes below.
camera_preset	string	optional	turntable · dolly · cinematic. Default turntable.

Background modes

background.type	Other fields	What you get
"remove"	none	Transparent background. The MP4 renders the subject on a clean white plate.
"image"	url (public)	Your own backplate dropped in as the scene.
"prompt"	prompt (string)	We generate a subject-free scene from your description and use it as the backplate.

Example — cURL

curl -X POST https://api.pixelapi.dev/v1/studio/transform \
  -H "Authorization: Bearer $PIXELAPI_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "session_id": "2a91884c-1bb5-44e3-a6e0-7db0a5a56668",
    "object_index": 0,
    "background": {
      "type": "prompt",
      "prompt": "on a marble countertop with soft natural light"
    },
    "camera_preset": "turntable"
  }'

Response

{
  "job_id": "e76d4dfc-8e0a-4e1b-a5a2-4f9c8a14e2b3",
  "status": "queued",
  "credits_used": 75,
  "estimated_seconds": 240,
  "poll_url": "/v1/studio/result/e76d4dfc-8e0a-4e1b-a5a2-4f9c8a14e2b3"
}

3. GET /v1/studio/result/{job_id} — poll status

Poll every 3-5 seconds until status is completed or failed. Credits are refunded automatically on failure.

In-progress response

{
  "job_id": "e76d4dfc-8e0a-4e1b-a5a2-4f9c8a14e2b3",
  "status": "processing",
  "step": "generating-3d",
  "progress": 60,
  "scene_url": "https://api.pixelapi.dev/outputs/files/edits/.../scene.jpg"
}

The step field walks through these stages: starting → cropping → removing-bg → generating-bg → compositing → generating-3d → rendering-video → done.

Completed response

{
  "job_id": "e76d4dfc-8e0a-4e1b-a5a2-4f9c8a14e2b3",
  "status": "completed",
  "step": "done",
  "progress": 100,
  "output": {
    "mp4_url": "https://api.pixelapi.dev/dl/3d/.../turntable.mp4",
    "glb_url": "https://api.pixelapi.dev/dl/3d/.../model.glb",
    "scene_url": "https://api.pixelapi.dev/outputs/files/edits/.../scene.jpg",
    "removed_bg_url": "https://api.pixelapi.dev/outputs/files/edits/.../cutout.png"
  }
}

Four downloadable artifacts every job produces:

Field	What it is	Use case
mp4_url	The hero deliverable. 24 fps, 4 s, 768×768.	Drop into product pages, ads, social.
glb_url	The reconstructed 3D mesh with production-ready textures.	AR previews, Blender/Unity/Unreal/Three.js.
scene_url	The composited still — subject + new background.	Static product photo, thumbnails.
removed_bg_url	Subject cutout with transparent alpha.	Re-use in your own compositing.

Failed response

{
  "job_id": "e76d4dfc-...",
  "status": "failed",
  "error": "3D generation timeout",
  "progress": 0
}

When status == "failed", the 75 transform credits are automatically refunded to your account before the response is returned. The 5 /init credits are not refunded because object detection always succeeds on its own.

---

Camera presets

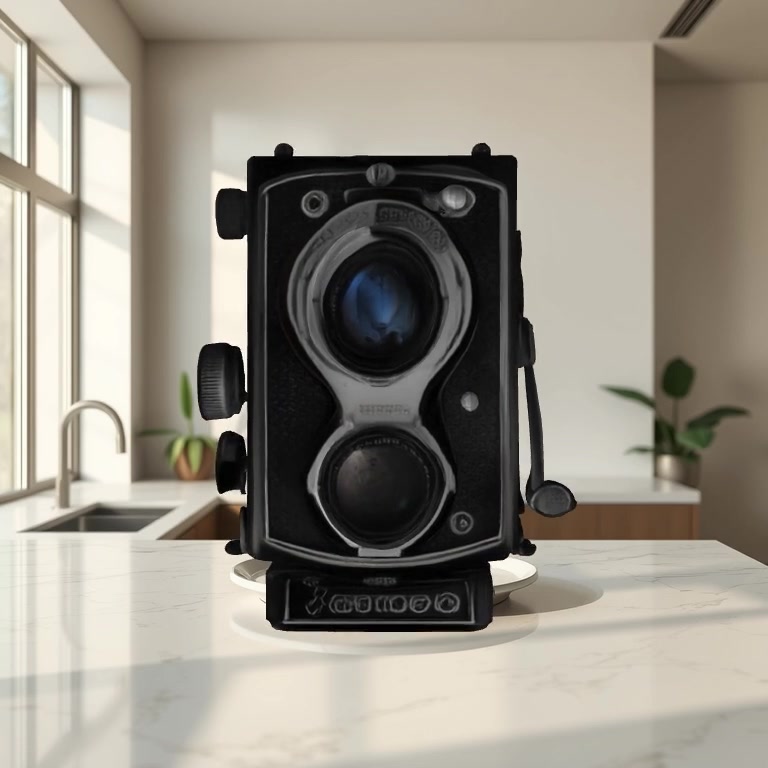

Each preset is a 4-second 24 fps render. Click play to compare:

Auto-orient is on by default. Before rendering, the model is auto-rotated so its largest face points square to the camera at angle 0. That means dolly never goes edge-on, and turntable never opens on a thin sliver, regardless of how the source photo was framed.

---

Full Python example

import os, time, requests

API = "https://api.pixelapi.dev"
KEY = os.environ["PIXELAPI_KEY"]
H = {"Authorization": f"Bearer {KEY}"}

# 1. INIT
with open("rolleiflex.jpg", "rb") as f:
    init = requests.post(f"{API}/v1/studio/init",
        headers=H, files={"image": f}).json()

print("session:", init["session_id"])
print("objects:")
for i, o in enumerate(init["objects"]):
    print(f" [{i}] {o['label']} ({o['category']})")

# 2. TRANSFORM
job = requests.post(f"{API}/v1/studio/transform",
    headers={**H, "Content-Type": "application/json"},
    json={
        "session_id": init["session_id"],
        "object_index": 0,
        "background": {
            "type": "prompt",
            "prompt": "on a marble countertop with soft natural light",
        },
        "camera_preset": "cinematic",
    }).json()

print("job:", job["job_id"], "ETA:", job["estimated_seconds"], "s")

# 3. POLL
while True:
    s = requests.get(f"{API}/v1/studio/result/{job['job_id']}",
                     headers=H).json()
    print(f" {s['status']:10} step={s.get('step','-'):20} pct={s.get('progress',0)}%")
    if s["status"] == "completed":
        out = s["output"]
        print("MP4:", out["mp4_url"])
        print("GLB:", out["glb_url"])
        # Download the MP4
        with open("output.mp4", "wb") as f:
            f.write(requests.get(out["mp4_url"]).content)
        break
    if s["status"] == "failed":
        print("FAILED:", s.get("error"))
        break
    time.sleep(4)

Node.js example

import fs from "fs";
import FormData from "form-data";
import axios from "axios";

const API = "https://api.pixelapi.dev";
const H = { Authorization: `Bearer ${process.env.PIXELAPI_KEY}` };

// 1. INIT
const form = new FormData();
form.append("image", fs.createReadStream("rolleiflex.jpg"));
form.append("max_objects", "6");
const init = (await axios.post(`${API}/v1/studio/init`, form, {
  headers: { ...H, ...form.getHeaders() },
})).data;

// 2. TRANSFORM
const job = (await axios.post(`${API}/v1/studio/transform`, {
  session_id: init.session_id,
  object_index: 0,
  background: { type: "prompt", prompt: "on a marble countertop with soft natural light" },
  camera_preset: "cinematic",
}, { headers: { ...H, "Content-Type": "application/json" } })).data;

// 3. POLL
while (true) {
  const s = (await axios.get(`${API}/v1/studio/result/${job.job_id}`, { headers: H })).data;
  console.log(`${s.status} step=${s.step} pct=${s.progress}`);
  if (s.status === "completed") { console.log("MP4:", s.output.mp4_url); break; }
  if (s.status === "failed") { console.log("FAILED:", s.error); break; }
  await new Promise(r => setTimeout(r, 4000));
}

---

Error codes

HTTP	Meaning	What to do
400	Invalid image, bad background.type, object_index out of range, or bbox crop too small.	Re-check inputs.
401	Missing / invalid API key.	Pass Authorization: Bearer <key>.
402	Insufficient credits (need 5 for init, 75 for transform).	Top up at pixelapi.dev/billing.
404	Session expired (24h TTL) or job not found.	Restart with a fresh /init call.
503	Object detection temporarily unavailable.	Retry after a few seconds — no credits charged.

Tips for best results

1. Single hero subject in the frame. Detection works on multi-object photos but the 3D step gives the strongest output when one subject dominates.
2. Mid-distance shots beat extreme close-ups. A little of the original scene around the subject gives the 3D step depth cues to work with.
3. Even lighting helps texture quality. Harsh shadows get baked into the GLB albedo.
4. Pick the smallest bbox that fully contains the subject. The orchestrator pads the crop generously on its own.
5. Background prompts work best when they describe a scene, not just a color. “on a marble countertop with soft natural light” beats “white”.
6. Pick the camera that matches the use: turntable for catalogs, dolly for ads, cinematic for launches.

Known limits

• The 3D model has no input signal for the underside of the object — the bottom is approximated and may show soft artifacts in extreme low-angle shots.
• Validated subject classes today: rigid products and discrete objects (cameras, bottles, tools, electronics, accessories, packaging). Humans, animals, and flat-lay clothing are out of scope for the 3D step in this version.
• Output MP4 is 768×768 at 24 fps. Higher resolutions are on the roadmap.

---
